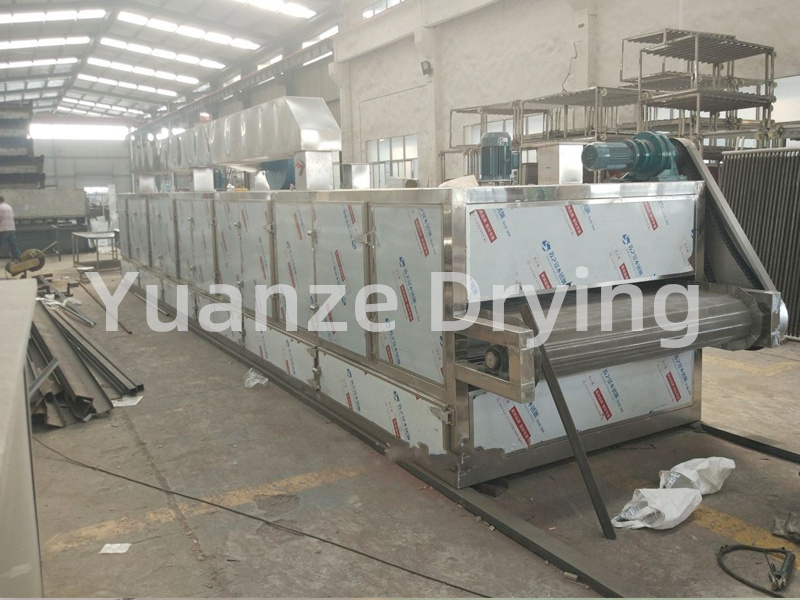

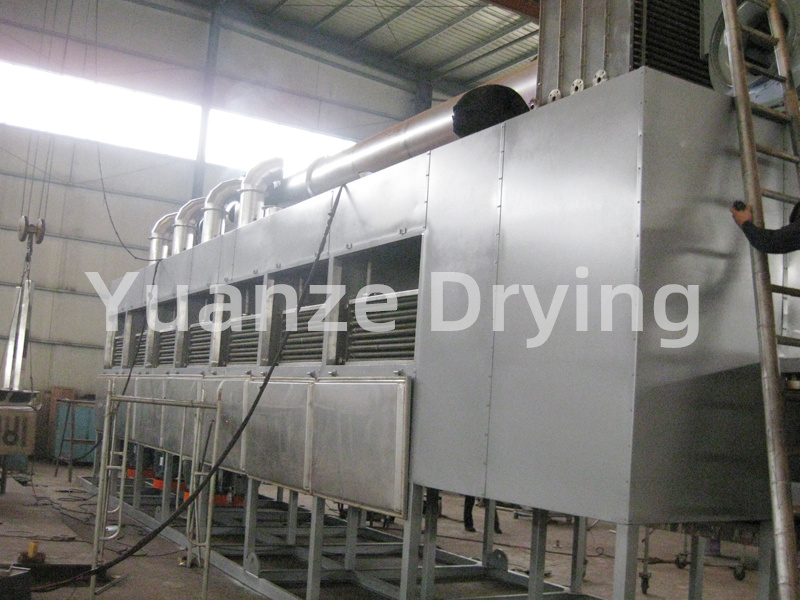

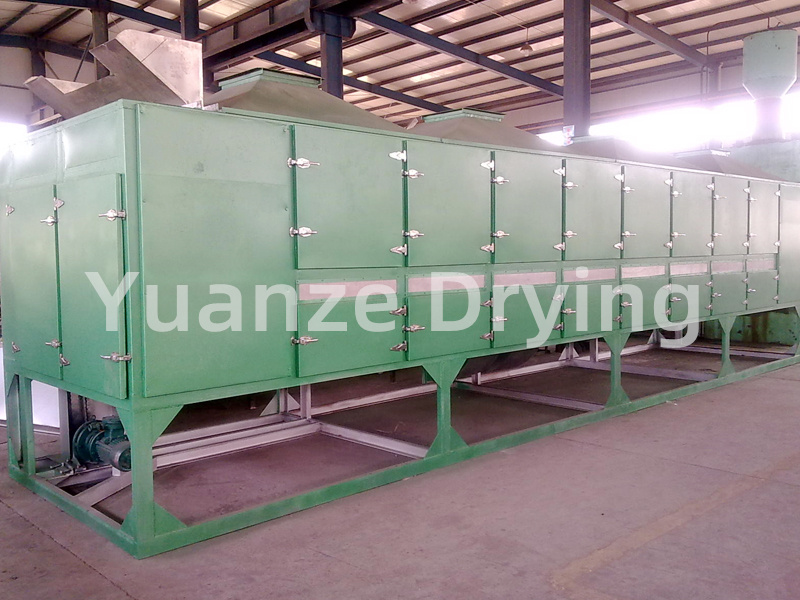

DW series single-layer belt dryer
DW series single-layer belt dryer
Description
This machine is a continuous flow drying equipment used for drying sheet, strip, and granular materials with good breathability. It is particularly suitable for dehydrated vegetables, traditional Chinese medicine slices, and other materials with high moisture content and temperature not allowed to be high; This series of dryers has the advantages of fast drying speed, high evaporation intensity, and good product quality. For dehydrated cake like paste like materials, they need to be manufactured
It can adjust the air volume, heating temperature, material residence time, and feeding speed to achieve optimal drying effect.
The equipment configuration is flexible and can use mesh belt flushing system and material cooling system.
Most of the air is recycled, highly energy-efficient.
Unique air distribution device ensures more even distribution of hot air and consistency of product quality.
The heat source can be steam, thermal oil, electric or coal-fired (oil) hot air stove matching
The materials are evenly laid on the mesh belt by the feeder, and the mesh belt is generally made of 12-60 mesh stainless steel wire mesh, which is dragged by the transmission device to move inside the dryer. The dryer consists of several units, each with independent circulation of hot air. Part of the exhaust gas is discharged by a dedicated dehumidification fan, and the exhaust gas is controlled by a regulating valve. The hot air passes through the mesh belt covered with materials from bottom to top or from top to bottom to complete the process of heat and mass transfer, taking away the moisture of the materials. The mesh belt moves slowly, and the operating speed can be freely adjusted according to the material temperature. The dried finished product continuously falls into the receiver. The upper and lower loop units can be flexibly equipped according to user needs, and the number of units can also be selected according to needs.
Dehydrated vegetables, pellet feed, monosodium glutamate, coconut, organic plastics, synthetic rubber, acrylic fiber, pharmaceuticals, medicinal herbs, small wood products, plastic products, aging and solidification of electronic components, etc.
| model | DW-1.2-8 | DW-1.2-10 | DW-1.6-8 | DW-1.6-10 | DW-2-8 | DW-2-12 |
| Number of units | 4 | 5 | 4 | 5 | 4 | 6 |
| Bandwidth m | 1.2 | 1.2 | 1.6 | 1.6 | 2 | 2 |
| Drying section length m | 8 | 10 | 8 | 12 | 8 | 12 |
| Paving thickness mm | 10～80 | |||||
| Operating temperature ℃ | 60～130 | |||||
| Steam pressure Mpa | 0.2～0.8 | |||||
| Steam consumption kgsteam/kgH2O | 2.2~2.5 | |||||
| Drying intensity kgH2O/h | 6~20kg/m2．h | |||||
| Total power of fan KW | 3.3 | 4.4 | 6.6 | 8.8 | 12 | 16 |
| Total power of equipment KW | 4.05 | 5.15 | 7.35 | 9.55 | 13.1 | 17.1 |
Note: Some parameters may be adjusted according to different materials during design, and the design shall prevail.
